【Android】How to obtain the Device ID

Outputting the Device ID

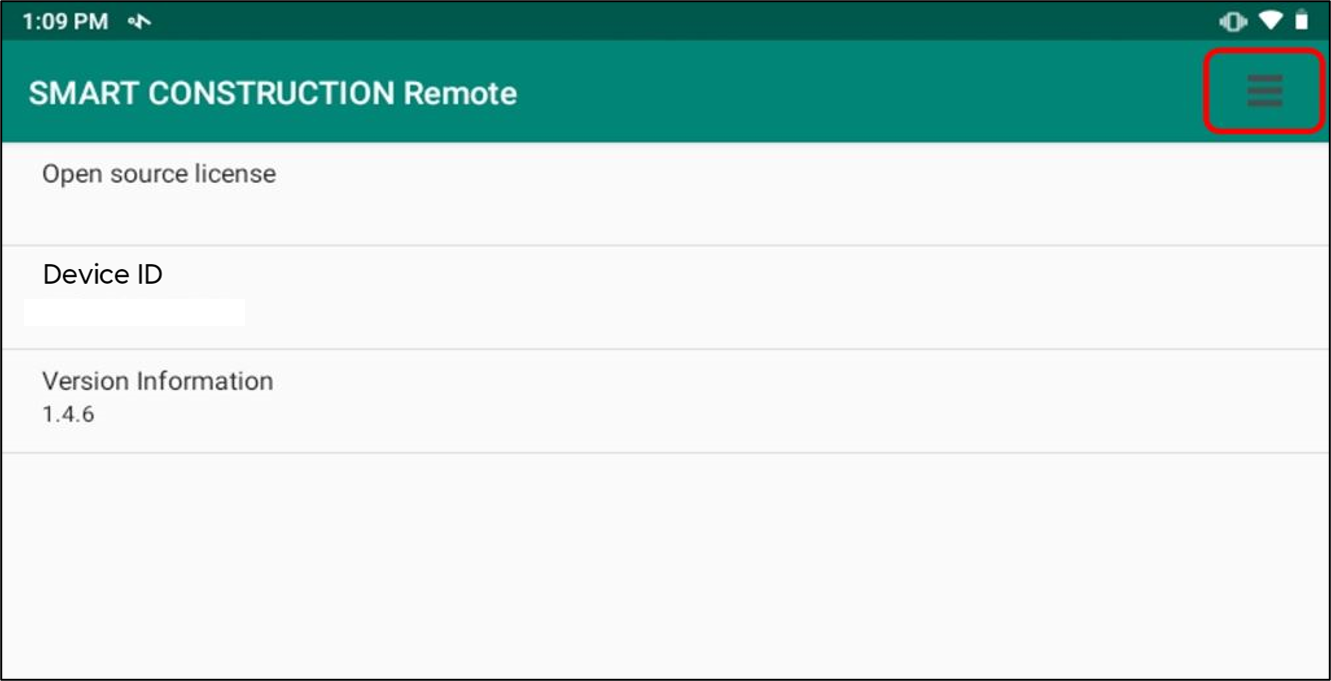

1Start the SMART CONSTRUCTION Remote and tap the hamburger menu.

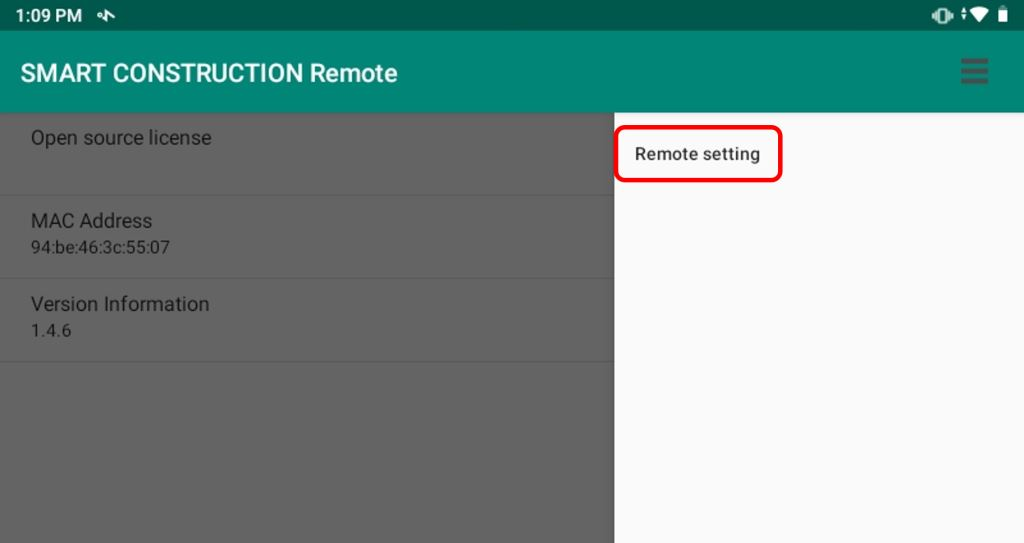

2From the menu, select "Remote setting".

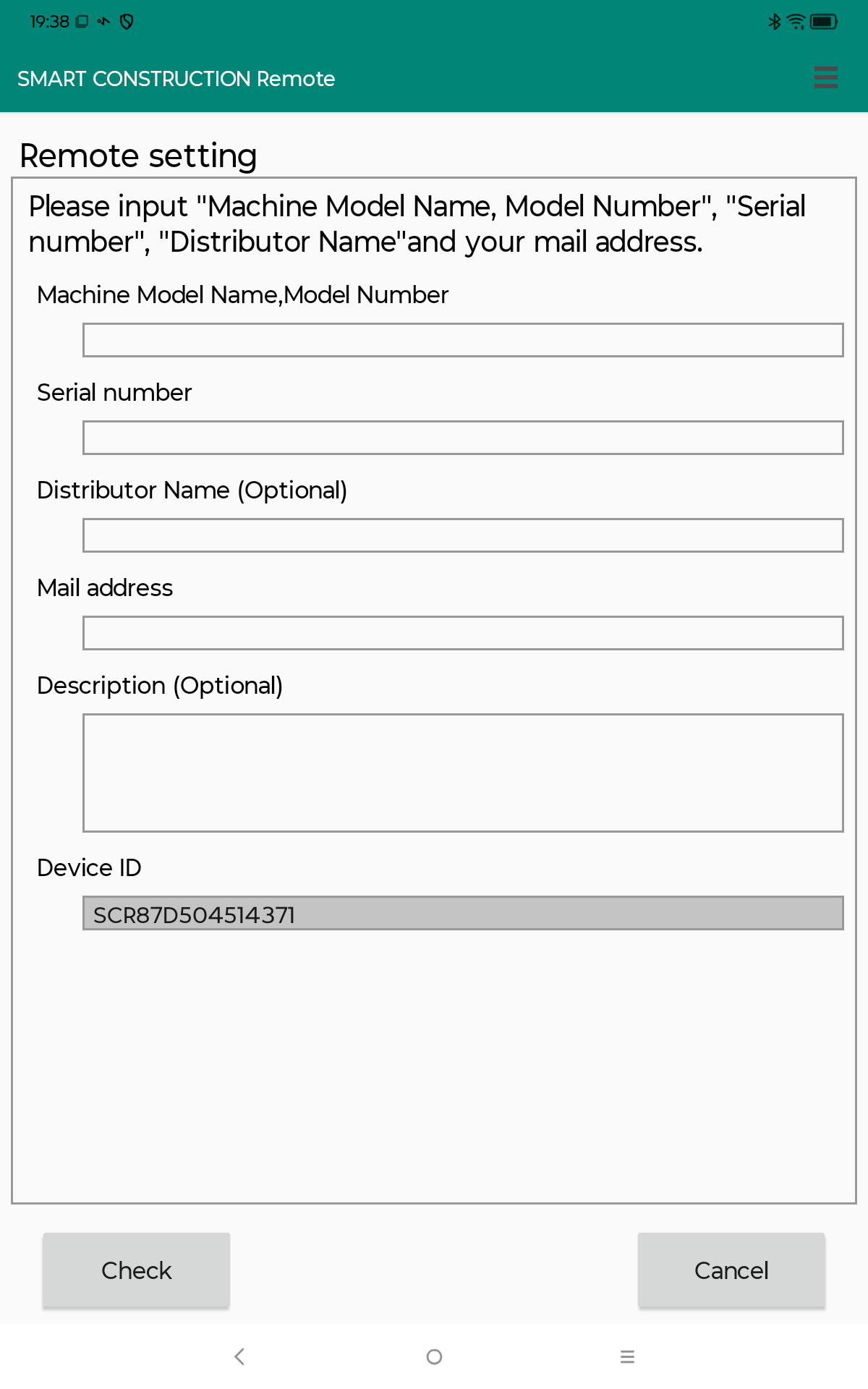

3The "Remote setting" screen is displayed.

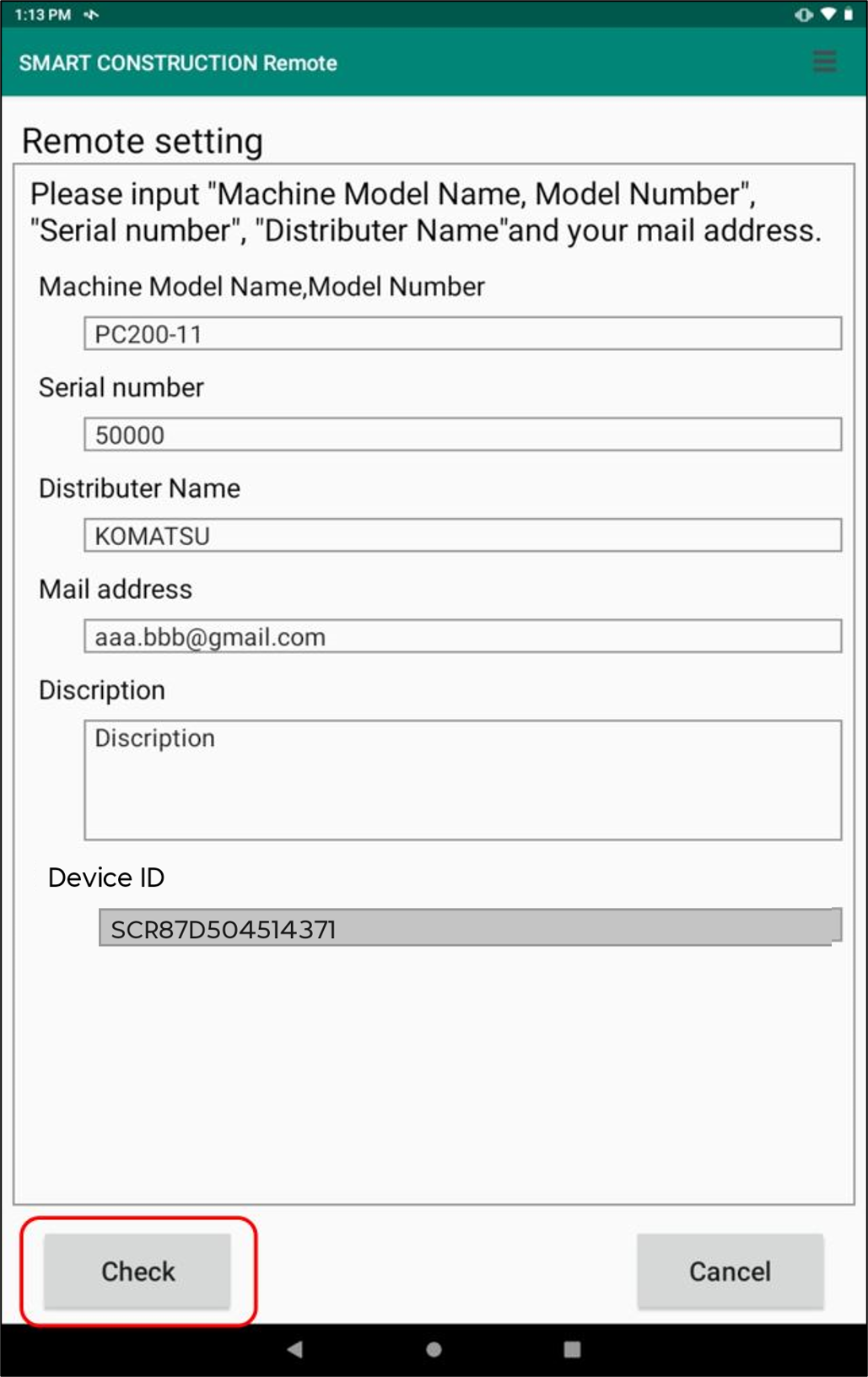

4Enter the information to output, then tap "Check".

Details of each Remote setting item

Item	On-screen label	Required / Optional	Allowed characters
Machine model name, model number	Machine Model Name, Model Number	Required	Single-byte alphanumeric characters and symbols (excluding symbols not allowed in file names) *1, *2
Serial number	Serial number	Required	Single-byte digits only
Distributor name	Distributor Name	Optional	Single-byte alphanumeric characters, symbols and spaces *1
Email address	Mail address	Required	Only characters allowed in email addresses *3, *4, *5
Description	Description	Optional	Single-byte alphanumeric characters, symbols, spaces and line breaks *1

*1: The following symbols can be used:
! " # $ % & ' ( ) * + , - . / : ; < = > ? @ [ \ ] ^ _ ` { | } ~

*2: For "Machine model name, model number", the following symbols cannot be entered because they are not allowed in file names:
\ / : * ? " < > |

*3: The characters allowed in email addresses are as follows.

Local part: Only the following symbols and alphanumeric characters can be used:
. ! # $ % & ' * + / = ? ^ _ ` { | } ~ -
However, they cannot be used in the following cases:
・When the first character is "." or "-".
・When "." immediately precedes "@".
・When "." appears consecutively.

Domain part: Only the following symbols and alphanumeric characters can be used:
- .
However, they cannot be used in the following cases:
・When not even a single "." is included.
・When "@", "-" and "." are entered consecutively.

*4: When specifying multiple destination email addresses, separate them with a comma (,), a single-byte space ( ) or a semicolon (;) (the separators may be mixed or repeated).
e.g.) [e-mail], [e-mail], ;;; [e-mail]

*5: If an entered value is underlined, refer to "Notes on pasting email addresses" below.

Notes on pasting email addresses

Caution: If you paste the "Mail address" while keeping the original document's formatting (HTML format), single-byte spaces are converted to non-breaking spaces (&nbsp) and cause an error.

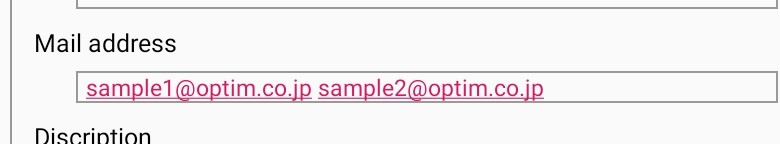

* Example with the original formatting kept (the email addresses are underlined, as shown above).

In that case, you must enter the separator characters manually or use "paste as plain text".

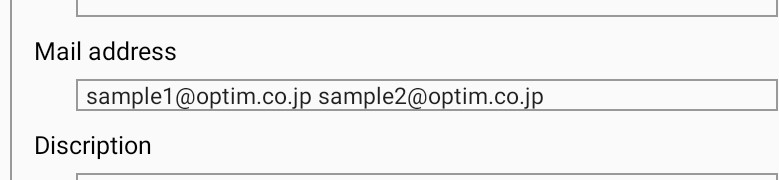

* Example without the original formatting (no underline, as shown above).

Sending

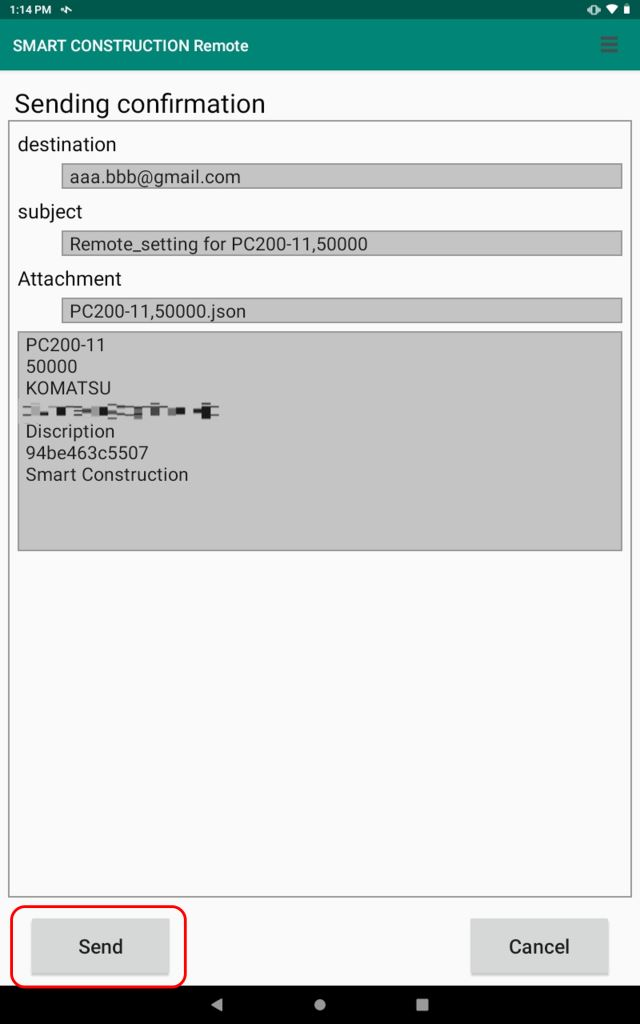

5The screen switches to the "Sending confirmation" screen. Check the entered information, then tap "Send".

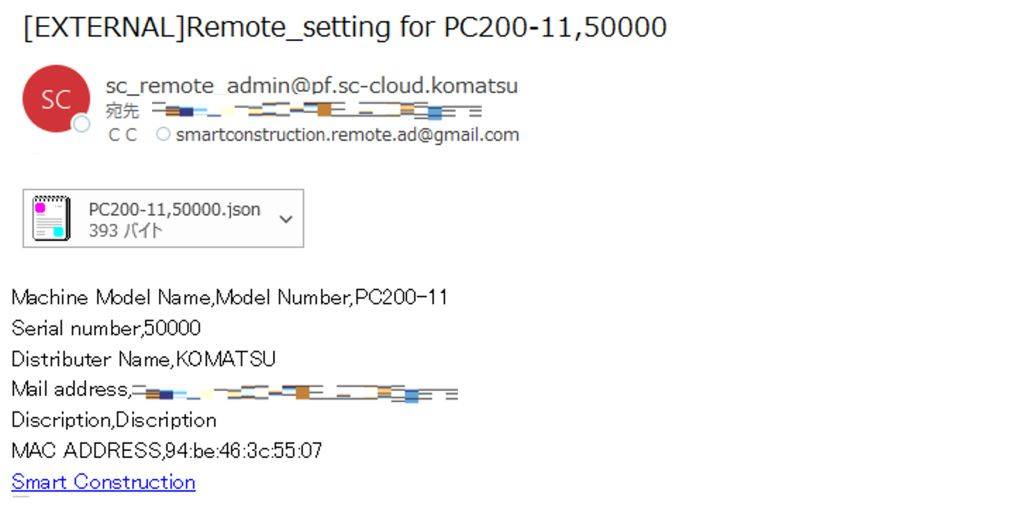

6The "Sending confirmation" screen closes, and an email containing the entered information is sent to the entered email address.

* The received-email image shown above is in HTML format. Text-format emails are displayed differently.

* For attached files, refer to "Notes on document attachment rules for the Device ID".
