Installation on Topcon FC6400

*The following setup requires internet access throughout the entire process*

Step 1: Panel Agents and Digital Certificates

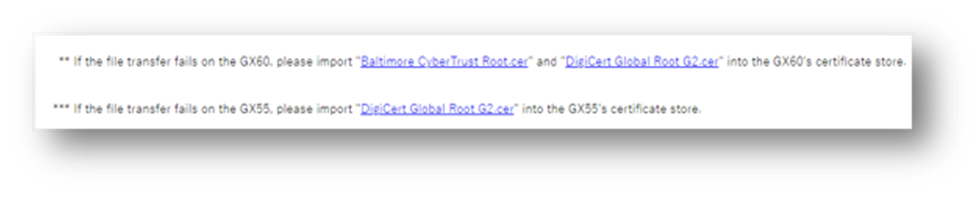

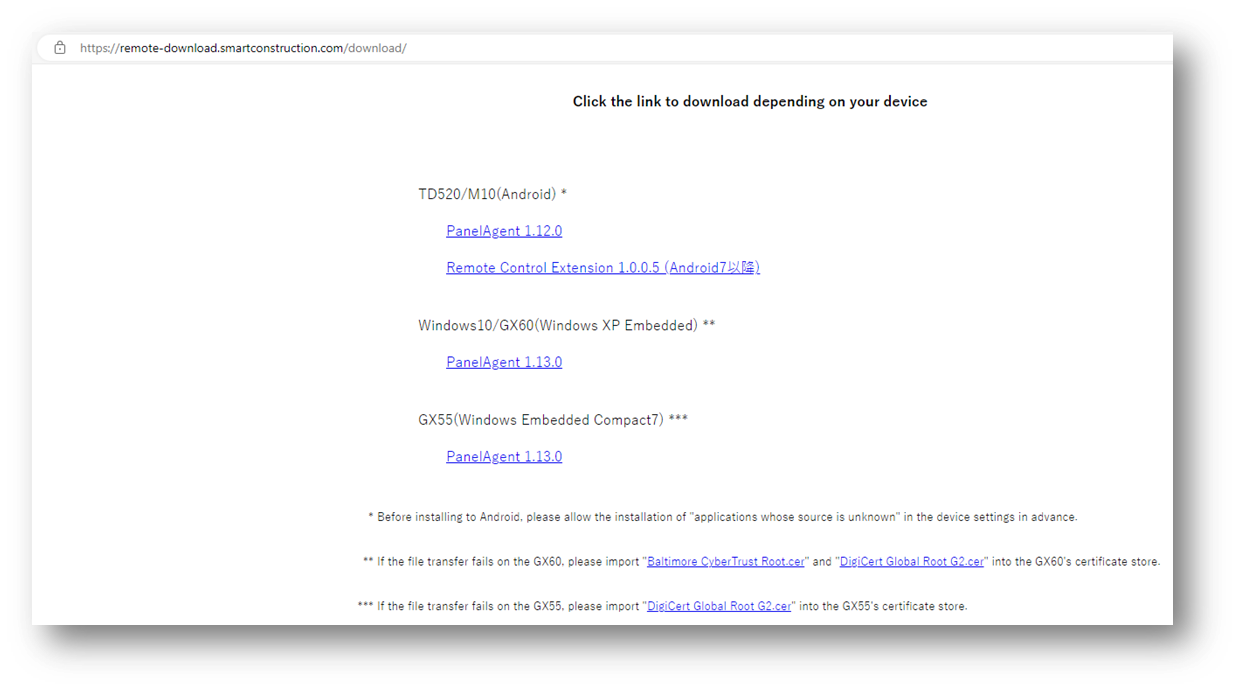

Download appropriate Panel Agent and Digital Certificate from Komatsu download site onto USB.

https://remote-download.smartconstruction.com/download

Step 2: Installation of Digital Certificate

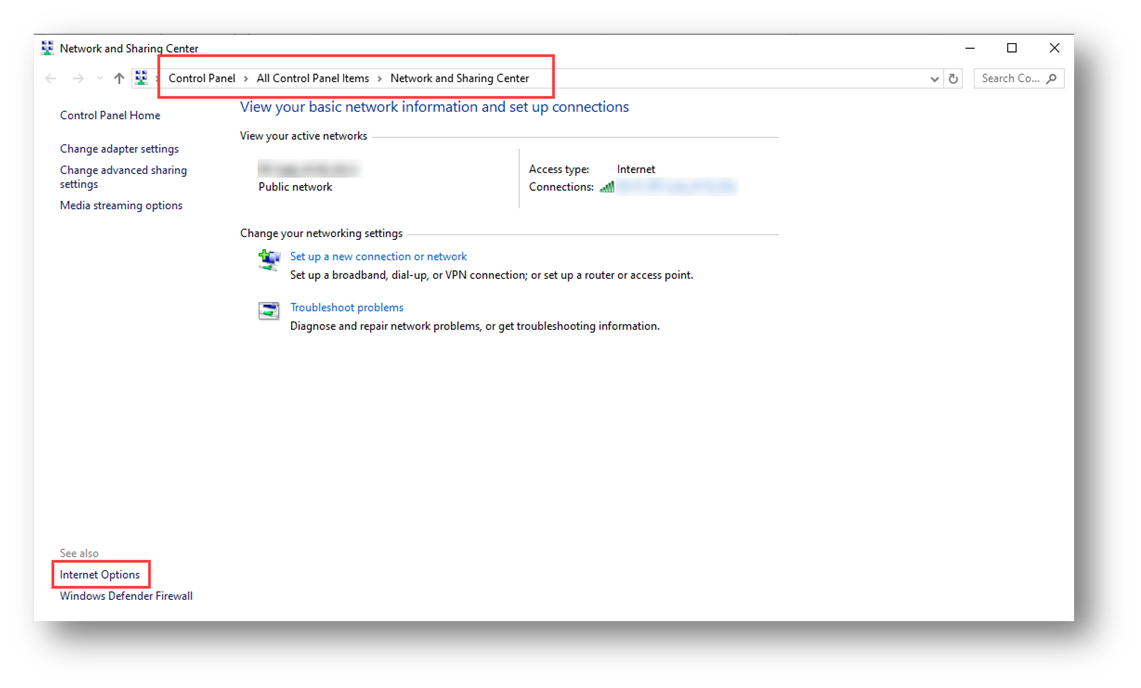

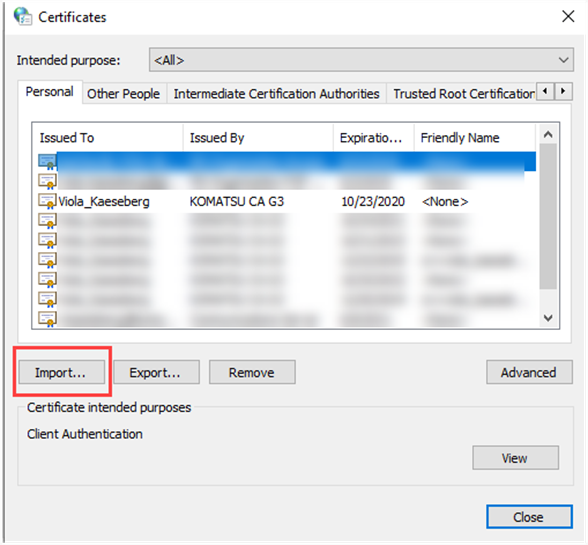

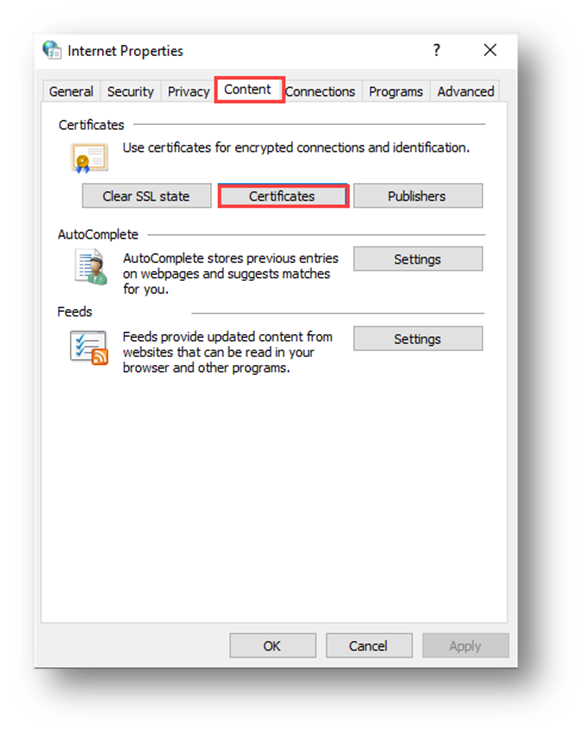

Go to Network and Sharing Center-->Internet Options-->Content-->Certificates and confirm appropriate Digital Certificate was installed. If there is no certificate, click Import and follow prompts until it’s completed.

Once Digital certificate is installed; install “Panel Agent” from USB

Step 3 Installation of Panel Agent

Connect USB to FC6400

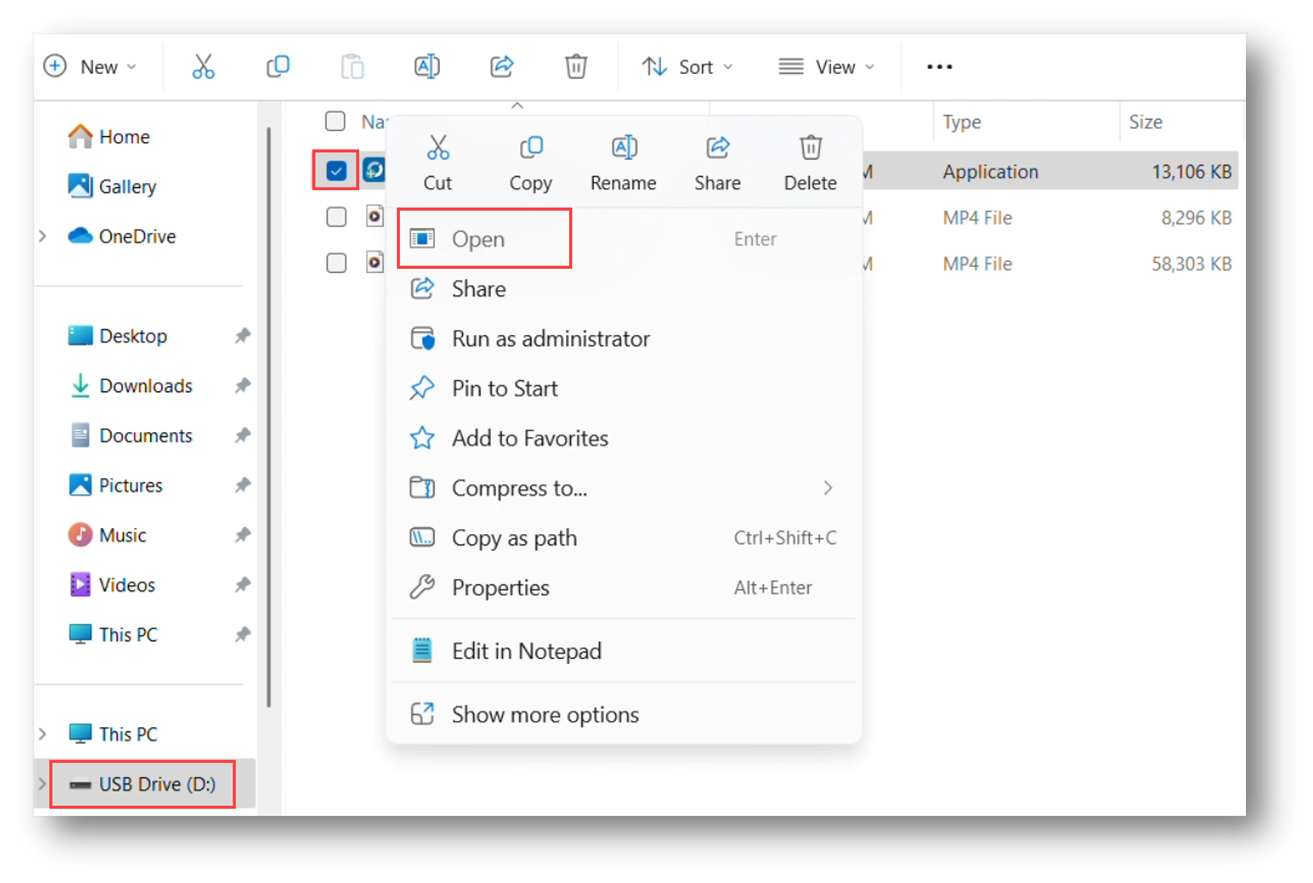

Open USB drive (1), select Panel Agent (2), and select Open (3)

Step 4 Installation of Panel Agent

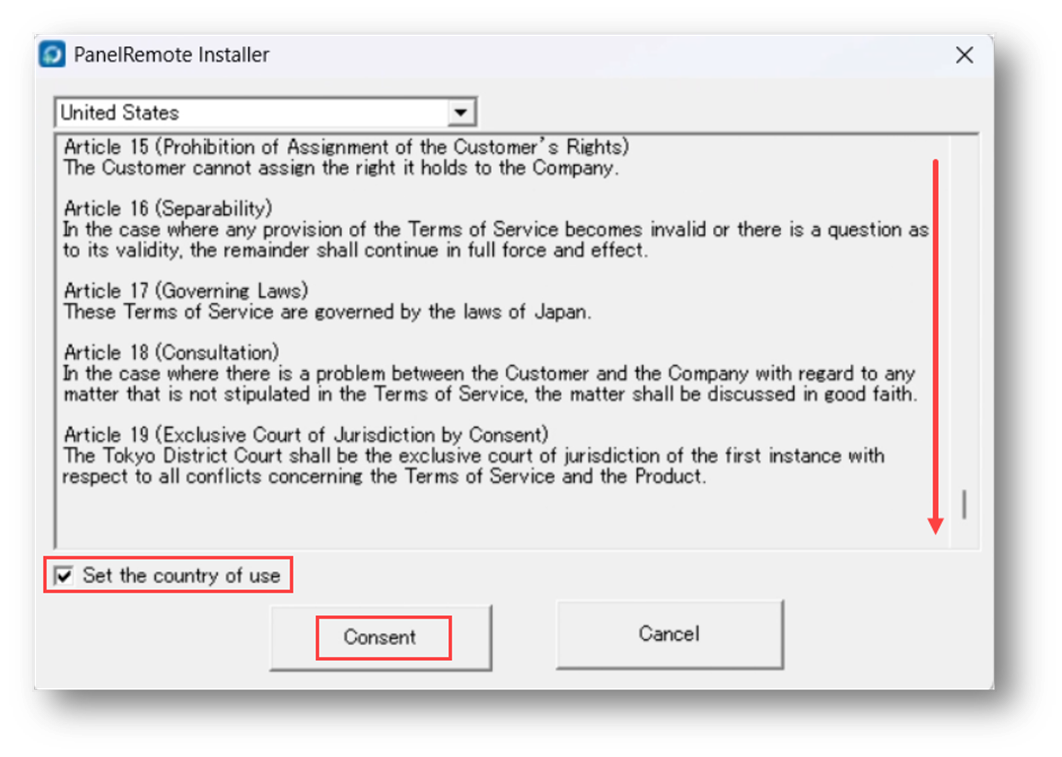

Panel Remote installer window will pop-up.

Read and scroll through entire terms of service.

To agree and continue, check the box and select Consent at the bottom of the screen.

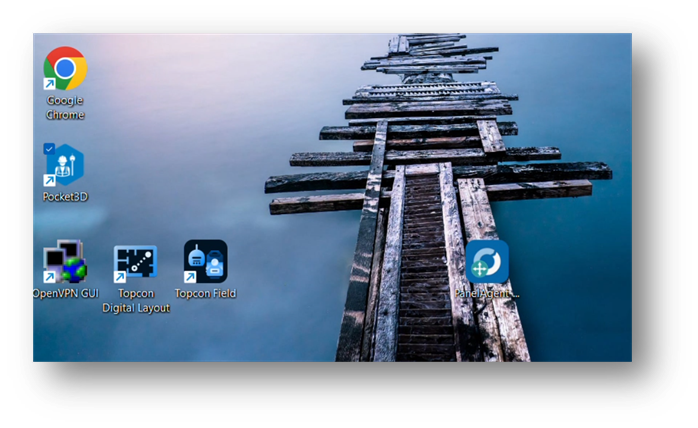

Panel agent icon will appear on desktop.

Step 5 Finding Device ID Number

Smart Construction Remote requires a MAC address/Device ID.

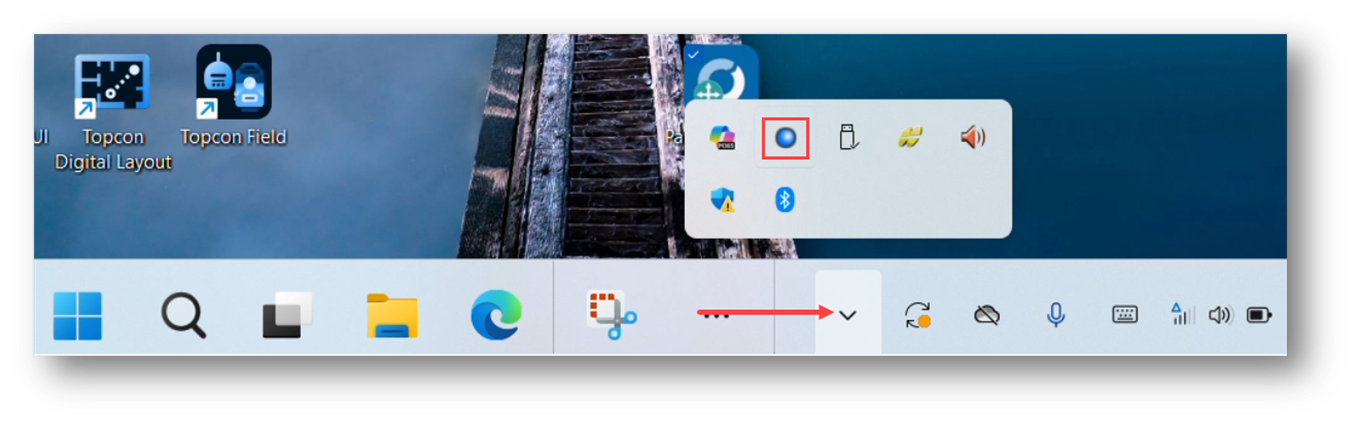

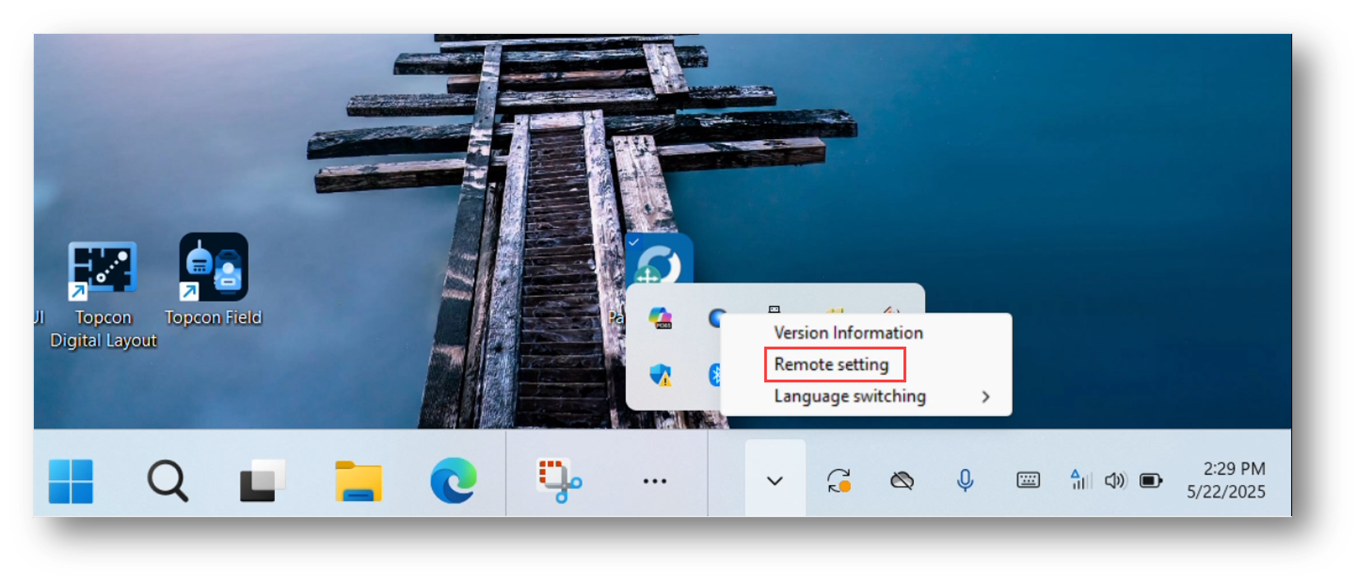

To find MAC address/Device ID, on the desktop ribbon, click on Blue Dot and select Remote Setting

Step 6 Finding Device ID Number

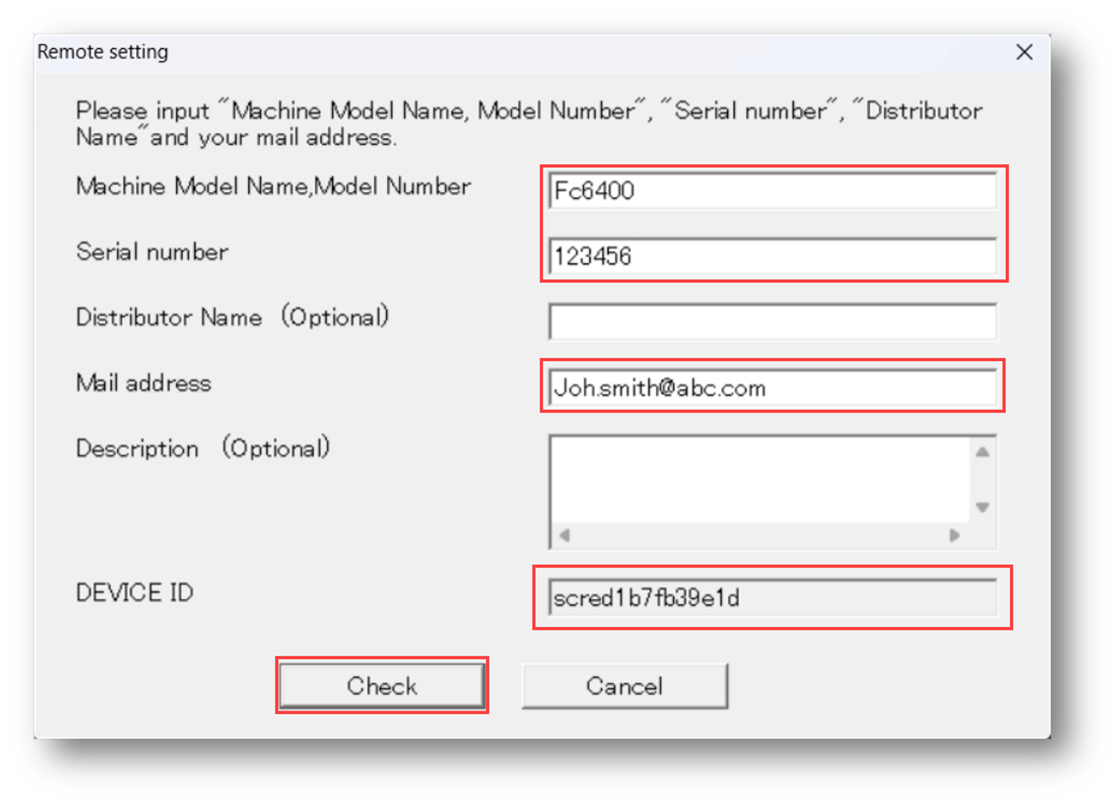

Fill in necessary boxes and select Check

The system will send an email with Json file containing machine information and Device ID

Now the device is ready for registration in Smart Construction Remote
